普通皮帶機綜合保護裝置
一、概述summary
    本裝置適用于有爆炸性氣體和煤塵的礦井中，用來對皮帶運輸機進行綜合保護及集中控制。
其具有以下特點：
1、語言預警及語言事故報警功能，語言報警既能報出故障性質又能報出發生故障的皮帶機號，這事同類產品所不具備的；
2、采用雙音頻傳輸技術傳輸系統中皮帶機的運行狀態，使得系統運行狀態對位顯比較直觀，這也是同類產品所不具備的；
3、具有同類產品相同的功能，如“集控、手動控制、綜合保護”及通訊等功能；
4、速度傳感器壽命長、靈敏度高、磁鋼和傳感器間安裝距離能達到50mm以上，便于安裝，且顯示直觀；
5、功能板之間散接線很少，很大程度上減少了接線的故障，使得裝置運行比較可靠。
This product, can centralized control and integrated protect the belt converor, is suitable for use in the coal mine underground where there are explosive gas and coal dust.
With features:
1. This device has a voice pre-warning and voice incident alarm, which can not only display the failure nature, but also report the failure belt drive, which is not available for other similar products.
2. It adopts double-voice transmission to transmit the conveyor’s running stage, in this way, it is more easily to know the running stage of system, which is not available for other similar products.
3. Centralized control, manual control and integrated protection.
4. Speed sensor has such advantages as long life, high sensitivity, the distance between magnet steel and sensor is above 50mm, assemble easily and display directly.
5. Cables between feature boards is so few that it lessens the faults of connection to a great extend, and makes operation more reliable.
二、適用環境
1、環境溫度：0℃～﹢40℃；
2、相對濕度≤95%；
3、大氣壓力：80KPa～106Kpa；
4、最?lèi)毫拥馁A存條件：﹣40℃～﹢60℃；
5、無顯著震動和沖擊的場所；
6、有濺水和淋水的場所；
7、含有瓦斯或煤塵爆炸的煤礦井下；
8、保護裝置電源電壓波動范圍為額定工作電壓的75%～110%。
Application environment:
1. Ambient temperature: 0℃～40℃
2. Relative humidity: ≤95%
3. Atmospheric pressure: 80～106Kpa
4. Storage conition: ﹣40℃～﹢60℃
5. Places where there is no strong shaking or impact.
6. Places where there is splashing water.
7. Risk places with explosive gas or dust.

三、技術參數
1、額定輸入電壓：127V/36V  AC；
2、電壓波動范圍：額定工作電壓的75%～110%；
3、本安輸出：12V/920mA DC；
4、最高電壓Um：140V AC；
5、最高輸出電壓：12.6V DC；
6、最大輸出電流：920mA ；
7、最大內部電容：34μmf；
8、最大內部電感：0.2mH；
9、各傳感器與主機間連接最大電纜長度不小于1000m；
10、外形尺寸：330mm×320mm×150mm。
Technical parameters
1. Rated input voltage: 12V/920mA DC
2. Voltage fluctuations: 75%～110%
3. Safety output: 12V/920mA DC
4. Max. voltage: 140V AC；
5. Max. output voltage: 12.6V DC
6. Max. output current: 920mA
7. Max. internal capacitor: 34μmf
8. Max. internal inductor: 0.2mH
9. Max. cable length between sensors and host machines≥1000m
10. Size：330mm×320mm×150mm。

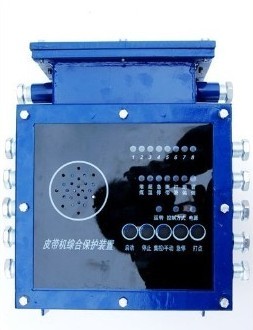

普通皮帶機綜合保護裝置實物圖
